The building of a Stuart S50 Engine
Crosshead

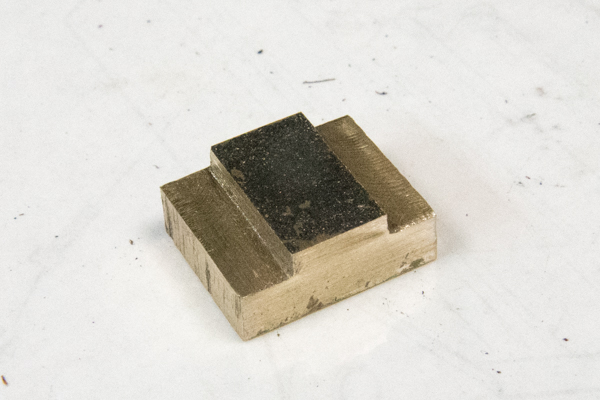

Crosshead started out as a piece of rectangular brass.
The two sided was cut using and end mill to the correct depth.
Lastly it was drilled and tapped to take a 5BA thread through to opposite end.
The building of a Stuart S50 Engine |
|
Crosshead |
|
| 28th September 2018 Crosshead started out as a piece of rectangular brass. The two sided was cut using and end mill to the correct depth. |
|

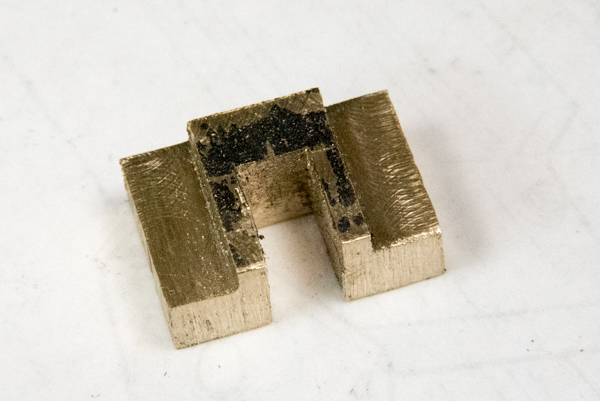

| The the recess to take
the connection rod was machined into it. Lastly it was drilled and tapped to take a 5BA thread through to opposite end. |
|
| The trial fit indicated
that some fettling is needed to make it all run easily. |
|
